XRGB-2

From Classic Console Upscaler wiki
Jump to: navigation, search

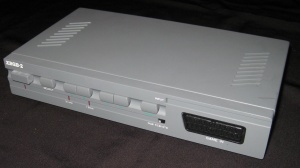

XRGB-2 Front

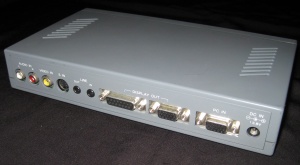

XRGB-2 Back
XRGB-2 Box

The XRGB-2 is an upscan converter by Micomsoft. It has limited capabilities when compared to the newer units such as the XRGB-2 plus and the XRGB-3, nevertheless it offers great performance. The stability of the image is rock solid, and you usually don't need to fiddle with settings as much as with later units.

It offers no remote control, and all functions are available through five buttons on the unit's front. It offers just one scanline setting, equivalent to the 127 setting (50%) on the XRGB-3.

Contents

Menu

Japanese English Setting Default setting Use
明るさ Brightness 0 - 62 41 Adjust white level
BLUE 0 - 62 31 Adjust blue
GREEN 0 - 62 31 Adjust green
H_POS 0 - 7 4 Adjust horizontal position
BLACK 0 - 62 0 Adjust black level
GAMMA OFF / 1 / 2 / 3 / 4 OFF Adjust gamma
USE_CH S+VIDEO / S VIDEO S+VIDEO
V_SYNC AUTO / 50HZ / 60HZ AUTO
AFC 0 - 8 0
DTC_TYP NTSC / PS / USER NTSC
USR_DTC 1 - 62 59
V_LINE OFF / ON OFF Scanlines

Super Mode menu

Menu Heading Explanation Allowable Range Default
BRIGHTNESS Adjust white level 0 - 62 41
BLUE Adjust blue 0 - 62 31
GREEN Adjust green 0 - 62 31
H_POS Adjust horizontal position 0-7 4
BLACK Adjust black level 0-62 0
GAMMA Adjust gamma OFF / 1 / 2 / 3 / 4 OFF
USE_CH Selection of usable terminal(s) S+VIDEO / S VIDEO S+VIDEO
LANGUAGE Language JPN / ENG JPN
CRT SYNC Sync Polarity NEG / POSI NEG
V_SYNC Vertical sync rate AUTO / 50HZ / 60HZ AUTO
15/31 SCAN Resolution 15KHZ/31KHZ 31KHZ
IIC USE *insert explanation* OFF / ON ON
AFC Upper screen distortion correction 0-8 0
AFC SAVE Saving AFC setting when shutting off OFF / ON OFF
AFC BOW *insert explanation* Middle
AFC ANGLE *insert explanation* Middle
AFC DEF *insert explanation* 0
RESET LOCK *insert explanation* OFF / LOCK1 / LOCK2 LOCK1
SUPER MODE Super Mode OFF / ON OFF
D/A LEVEL *insert explanation*
A/D LEVEL *insert explanation*
DTC_TYP Dot clock selection NTSC / PS / USER NTSC
USR_DTC User dot clock adjustment 1 - 62 59
V_LINE Scanlines OFF / ON OFF

Super Mode is available when starting the unit and waiting for five seconds then press select
and menu simultaneously and then press up, up, down, down, left, right, left, right, select and menu.


Note! that this is when using the RGB input (GAME IN) using the other inputs has a few unique extra features not shown here.

Specifications

Inputs

It also has passthrough for:

  • VGA
  • RCA Audio
  • Mini Jack

Outputs

  • VGA at 640x480 31khz
  • RGB in 15-pin D-sub (for older Japanese monitors)
  • Mini Jack for audio output

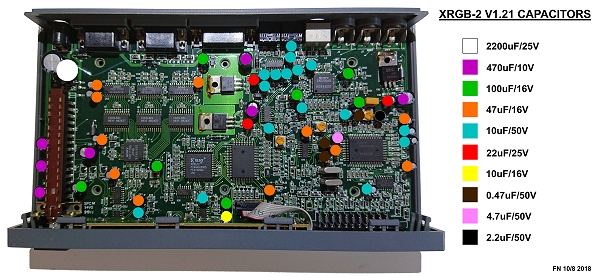

Capacitor List

Ver 1.21 PCB
HOLE:

C158 2200uF/25V
C21 470uF/10V
C134 470uF/10V
C27 470uF/10V
C98 470uF/10V
C45 470uF/10V
C3 470uF/10V
C12 470uF/10V
C30 100uF/16V
C153 100uF/16V
C157 100uF/16V
C73 100uF/16V
C70 100uF/16V
C167 100uF/16V
C118 100uF/16V
C156 47uF/16V
C154 47uF/16V
C63 47uF/16V
C125 47uF/16V
C83 47uF/16V
C155 47uF/16V
C128 47uF/16V
C147 47uF/16V
C13 47uF/16V
C116 47uF/16V
C81 47uF/16V
C132 10uF/50V
C38 10uF/50V
C64 10uF/50V
C57 10uF/50V
C150 10uF/50V
C68 10uF/50V
C67 10uF/50V
C25 10uF/50V
C50 10uF/50V
C99 10uF/50V
C23 10uF/50V
C7 10uF/50V
C24 10uF/50V
C29 10uF/50V
C32 10uF/50V
C82 10uF/50V
C44 22uF/25V
C2 22uF/25V
C8 22uF/25V
C36 10uF/16V
C62 0.47uF/50V
C17 0.47uF/50V
C54 0.47uF/50V
C55 4.7uF/50V
C53 2.2uF/50V
51pcs


Manual

XRGB-2 Manual (JP)

XRGB-2 Manual (EN)

FAQ

What is the "RGB/PCB STD" switch for?

This little switch physically activates a set of 220 ohm resistors, allowing the use of arcade game pcbs on your display device. This is needed since the video level used by PCBs is higher than the one used by game consoles, the resistors make them equivalent.

How to reset XRGB-2

When the unit is powered down, press all four buttons (up, down, left and right) and then power on the unit. All values will be reset to factory defaults.

Important : about GAME IN input (RGB-21)

Never directly use the European standard SCART cables with an XRGB-2 since the pinout is different to the Japanese standard RGB-21 ones, and damage might result due to voltage applied on signal lines.

Power Supply

Power supplies tend to fail. It requires 12V 0.5 Amp, center positive. Less than 12 and more than 11 tends to give a wobbly image, and less than 10V turns on the LED without output.

Scanlines

This unit has only one scanline setting, and is activated by turning on the last option in the menu, named V_LINE.

In order to compare the scanlines to those of the XRGB-3, several pictures were taken at different scanline levels. The results matched at level 127 of the XRGB-3. The same cables, arcade PCB, camera settings and TV were used to connect and compare them. The images show a cropped section of pure white on the CRT calibration screen of a System 16 board.

XRGB-2-Scanlines.jpg XRGB-3-Scanlines-127-cropped.jpg

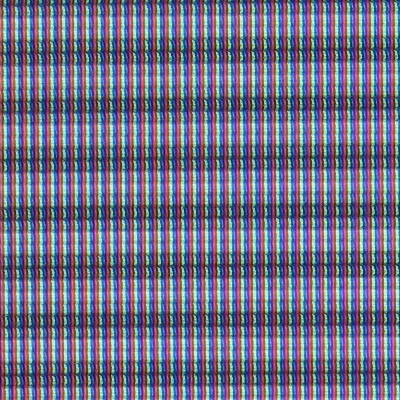

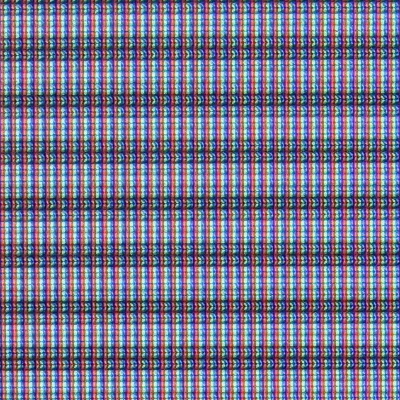

XRGB-2 with scanlines photo XRGB-3 with scanlines at 127

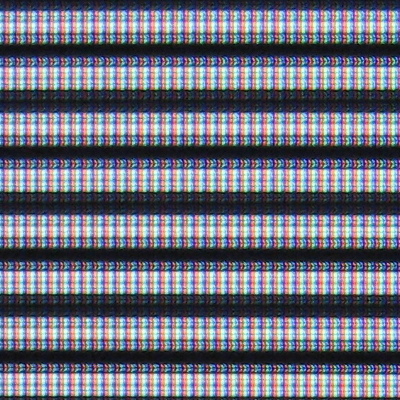

XRGB-3 with scanlines at 001 for reference
